- Place of Origin: Guangdong, China (Mainland)
- Brand Name: JOPAR

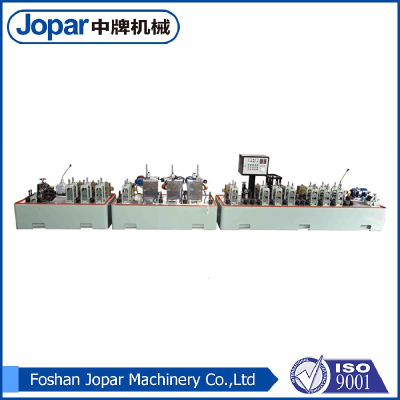

- Model Number: ZP-I50
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Technical Parameter :
Model | Horizontal axles(mm) | Vertical axles(mm) | Diameter range(mm) | Thickness(mm) | Main motor power | Size of machine (L*W)(M) |
ZP-I40 | 40 | 25 | ¢8-¢51 | 0.5-2.0 | Fornt7.5KW Rear5.5KW | 29*1.5m |
ZP-I50 | 50 | 30 | ¢25-¢63 | 0.5-3.0 | Fornt11KW Rear7.5KW | 32*1.5m |
ZP-I60 | 60 | 40 | ¢50-¢114 | 0.6-3.5 | Fornt15KW Rear15KW | 32*1.8m |
ZP-I80 | 80 | 50 | ¢89-¢168 | 1.0-4.5 | Fornt18.5KW Rear18.5KW | 40*2.5m |
ZP-I100 | 100 | 60 | ¢114-¢219 | 1.0-5.0 | Fornt22KW Rear22KW | 43*3.0m |

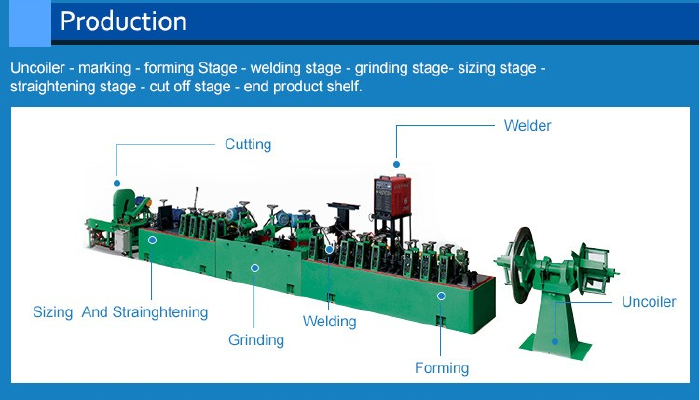

Main components of the production: uncoiler,forming and welding unit,grinding unit,sizing unit,straightening racks, cut off machine,end- product shelf | ||||||
Product Description
Company experience: We have rich experience for 8 years in this industry. And we can help you settle any question about the machine before you purchase.
Technical worker: More than 200 Elite technicians, we also established an advanced computer simulation laboratory and equipment R&D test workshop.
Production Capacity: 40 sets per month,More orders, we can produce 60 sets per month.
Export country: We have export to many country such as India, Pakistan , Bangladesh, Japan, Korea, Vietnam, Indonesia , Russia, Malaysia, Poland, Myanmar ,Colombia and so on, also we have marketing agent in India.
Machine advantage: The vertical / Horizontal holders used to CNC from Taiwan, can ensure the customer used safe and will not make the pipe transformation, And Adopt first class suppliers,like Siemens motor,ZhuJiang Gearbox ,Dongfeng Auto Parts,and Guangzhou Weide TIG Welder in the machine.
Size of machine: The least model of machine length is 19.5m, width is 1.0m, height is 1.5m, and the max model of machine length is 43m, width is 3.0m, height: 3.0m.
Power supply: Will need above 110V/220V/380V/415V/440V FREQUENCY 50Hz 60 Hz can start to operation , Also according to the model of machine to decided the power.
Tolerance:Under the normal situation, the roundness tolerance is 0.3mm, can use callipers to sampling inspection.
Suggestion: “Bearings, Grinding head belt, Cylinder, Trip switch, Button, Pressure valve ”Basically, those are easy to broken . So, we suggest you for more above goods when you purchase. But attention, this is belong to normal case.
Serivce:
Pre serivce:
we will serve you from inquiry to products shipped out. During the process, you just need to discuss with us for all problems and the way saves much time.
After serivce:
Supply one year warranty for the machine, if the component is broken (not belong to man-made damage) we will repair for you.
Quality control: For each order,strict inspection will be carried out by the quality control department before shipping.The bad quality will be avoid within door
