- Place of Origin: Guangdong, China (Mainland)
- Brand Name: JOPAR
- Model Number: ZP-S450

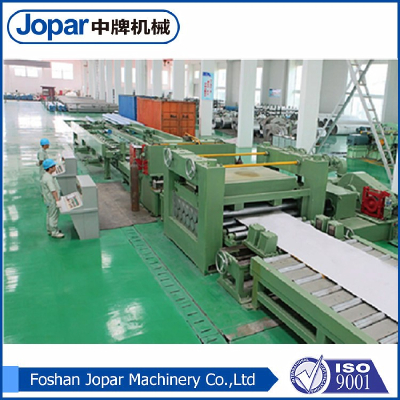

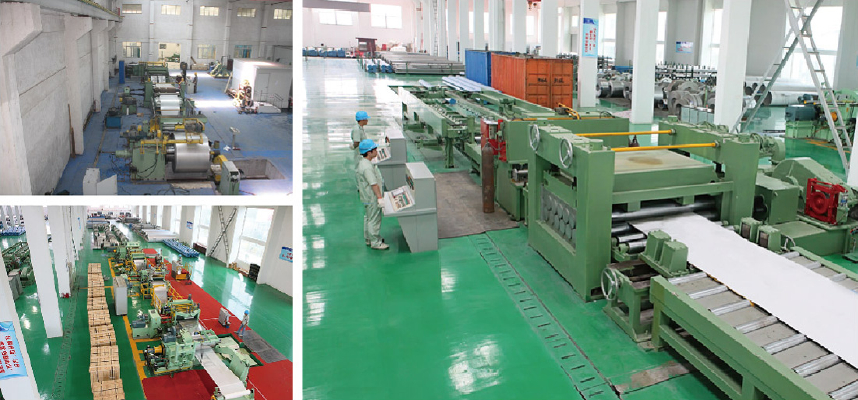

Slitting Machine is mainly used for slitting band steel/steel coil, carbon steel strip, copper strip, and all the other kinds of metal materials. The pipes before slitting the large coil to the small size of coils. Slitting line can do uncoiling, slitting and recoiling works, make coil steel to any needed width coil steel.
Structure:
● cart for uncoiler
● Single side/ double side uncoiler (support arm stand for single side uncoiler)
● Leveling/ leveling shearing stand
● Loop bridge
● Side guide stand
● Single slitting knife/ double slitting knife stand
● Loop bridge and scrap winder
● Tension pad stand
● Recoiler
● Coil cart for recoiler
● Electric control system
Technical parameters
Model | ZP500 | ZP650 | ZP750 | ZP850 | ZP11000 | ZP1350 |
strip width(mm) | 460 | 620 | 720 | 820 | 950 | 1300 |
material thickness(mm) | 0.1-2.0 | 0.1-2.0 | 0.1-2.0 | 0.1-2.0 | 0.2-2.5 | 0.2-2.5 |
Slit strands | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
total power(kw) | 33 | 33 | 33 | 37 | 37-45 | 37-45 |
slitting speed (m/min) | 0-100 | 0-100 | 0-100 | 0-100 | 0-70 | 0-70 |
Coil Weight (ton) | 5 | 5 | 5 | 6 | 8.5 | 10 |
Size(L*W*H)(m) | 15*4*2.5 | 16*4*2.5 | 18*4*2.5 | 18*4*2.5 | 22*6*2.5 | 22*6*2.5 |
